Technical specifications

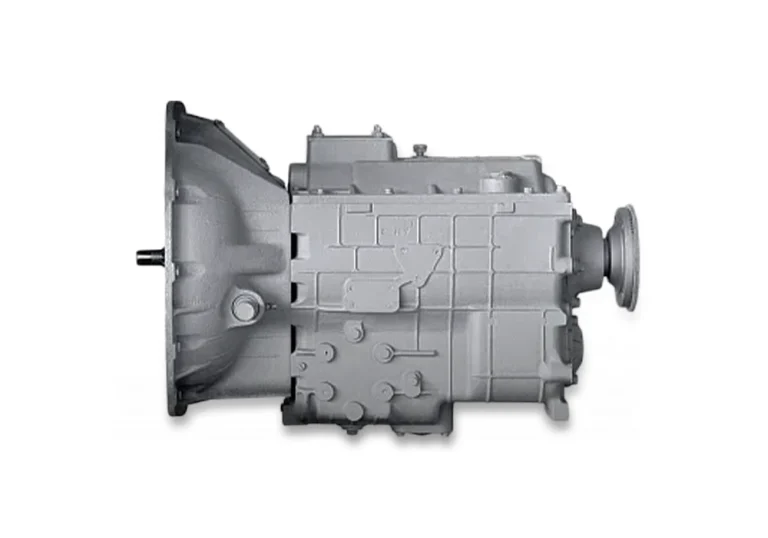

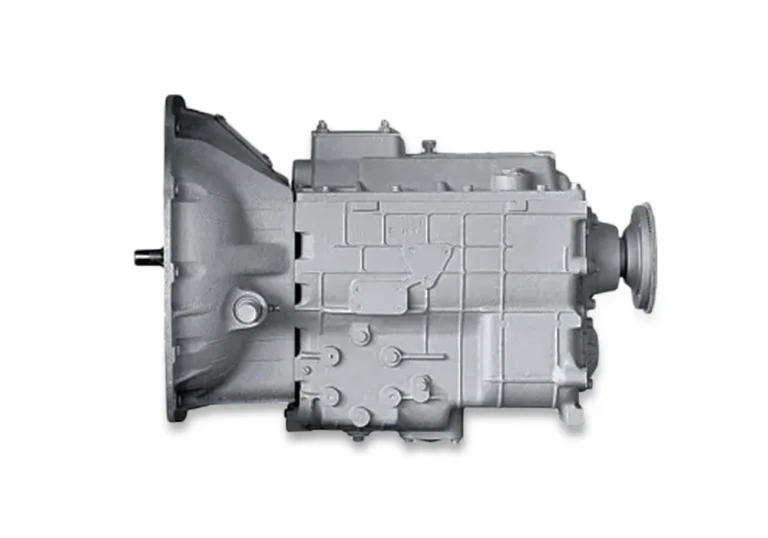

Gearbox type
- 9-speed, manual; five-speed main gearbox with dual-range planetary gearbox, with synchronizers in all gears except first gear and reverse.
Additional power take-off
- From the countershaft spur gear through the right side hatch to 29.5 kW (40 hp); From the ring gear at the rear end of the intermediate shaft via the power take-off shaft to 73.5 kW (100 hp). The oil volume in the gearbox housing is 11.5+0’5 l.
Additional options
- The boxes can be equipped with a sealed clutch housing.
| INDEX | VALUES |
|---|---|
| MAXIMUM INPUT TORQUE, N.M | 1800 |
| WEIGHT WITH CRANKCASE, KG | 385 |
| GEAR RATIOS | 1 – 12.24 2 – 6.88 3 – 4.86 4 – 3.50 5 – 2.74 6 – 1.97 7 – 1.39 8 – 1.00 9 – 0.78 REVERSE – 10.04 |
| CARDAN SHAFT MOUNTING FLANGE | ISO8667-T180 |
