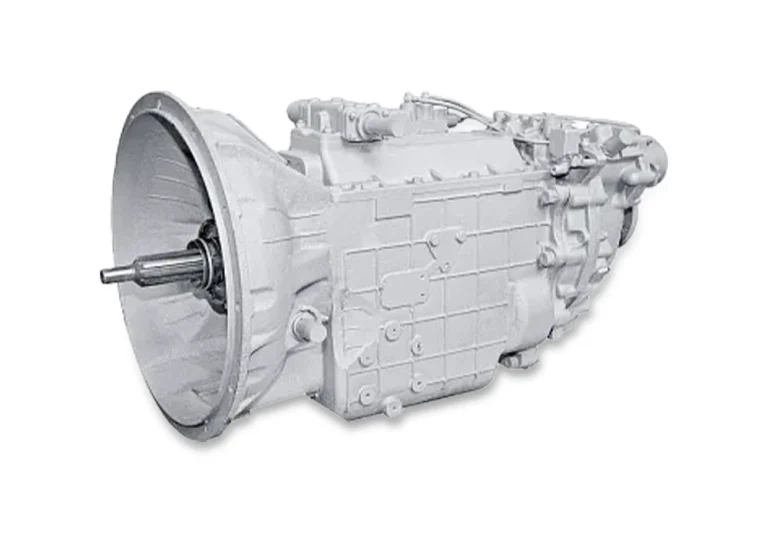

Technical specifications
Gearbox type
- 5-speed, mechanical, with synchronizers in 2-3 and 4-5 gears.
Additional power take-off
- from a special countershaft gear up to 29.5 kW (40 hp), from a gear coupling at the rear end of the countershaft up to 73.5 kW (100 hp), driven by a primary shaft ring gear 132 kW (up to 180 hp).
Oil volume
- The oil volume in the gearbox housing is 5.5+0-3 l.
Additional options
- The boxes can be equipped with a sealed clutch housing, an output shaft cover for a mechanical or electronic speedometer drive.
| INDEX | VALUES |
|---|---|
| MAXIMUM INPUT TORQUE, N.M | 930 |
| WEIGHT WITH CRANKCASE, KG | 240 – 245 |
| GEAR RATIOS | 1 – 5.22 2 – 2.90 3 – 1.52 4 – 1.00 5 – 0.664 REVERSE – 5.22 |
| CARDAN SHAFT MOUNTING FLANGE | SMOOTH, 8 M10 BOLTS Ø 155 MM OR ISO8667-T180 |
