Description

Engine's type

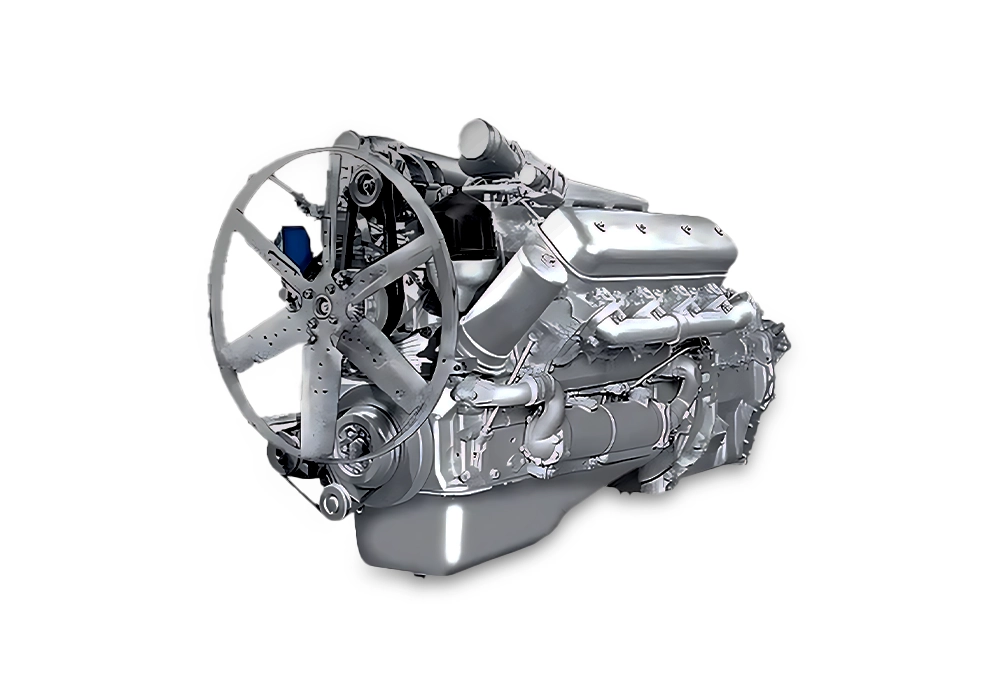

  • 8-cylinder, V-type, 4-stroke, direct injection, turbocharged, liquid-cooled, air-to-air intercooled diesel engine installed in vehicles



INDEXVALUES
Piston Diameter and Stroke, mm130 x 140
Engine Displacement, L14.86
Rated Power, Gross, kW (HP)309 (420)
Rated Rotation Speed, min⁻¹1900
Maximum Torque, Gross, Nm (kgfm)1813 (185)
Rotation Speed at Maximum Torque, min⁻¹1100–1300
Minimum Specific Fuel Consumption, g/(kW·h) / g/(HP·h)197 (145)
Lifetime Before Major Repairs, hour13000
Lifetime Before Major Repairs, thousand km of vehicle mileage650
Overall Dimensions, mm L×W×H1425 / 1045 / 1100
Engine Weight, kg1215
Engine Weight with Gearbox and Clutch, kg1685
Ecology (UN Regulations)No. 49-02B – Euro-2
