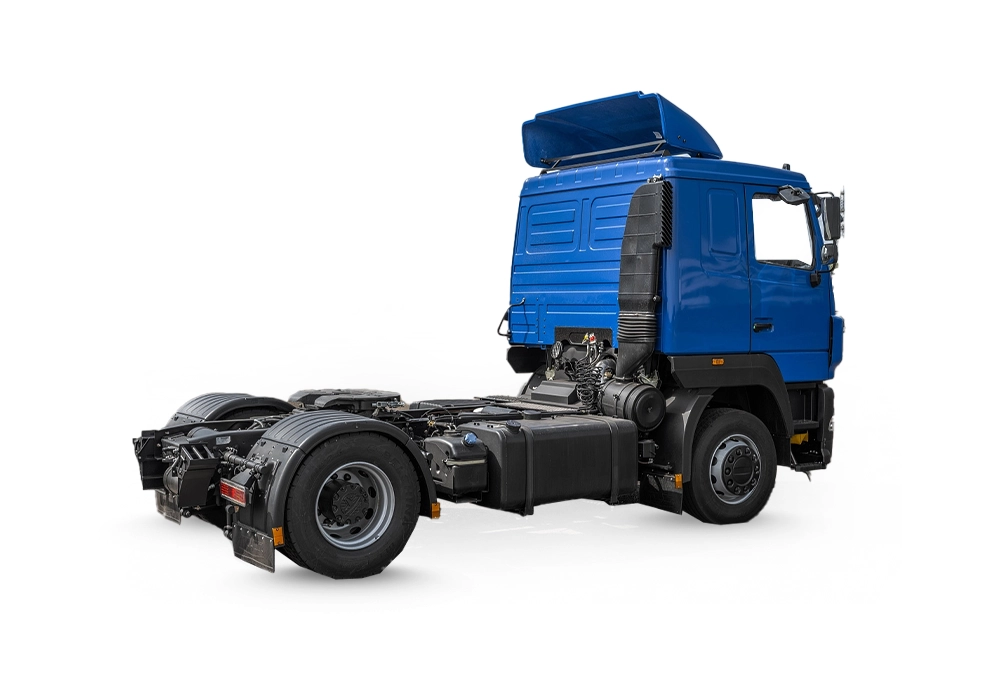

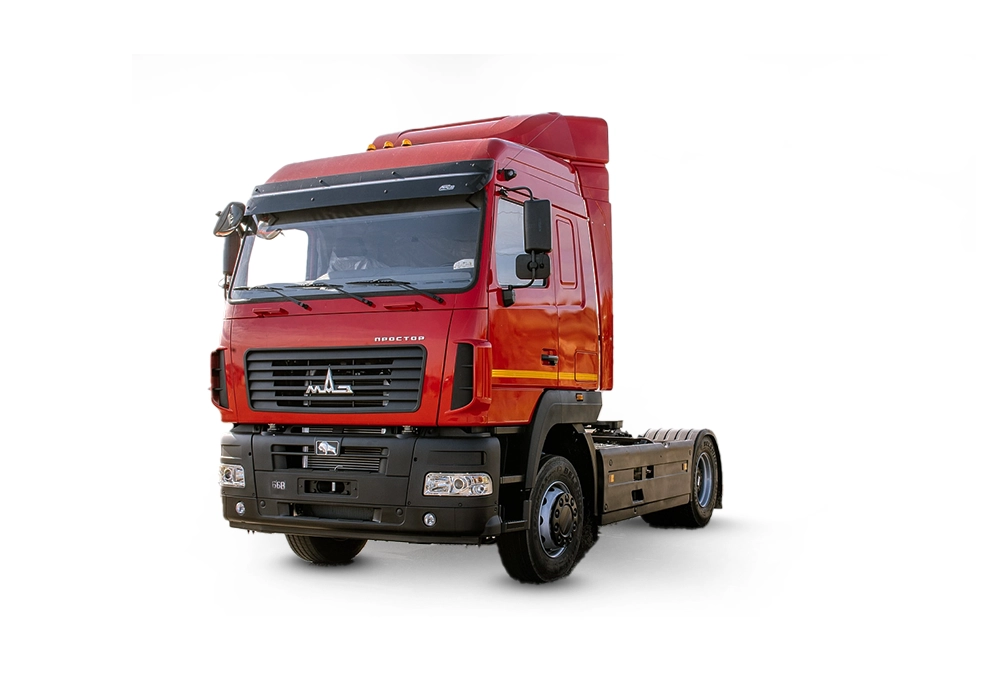

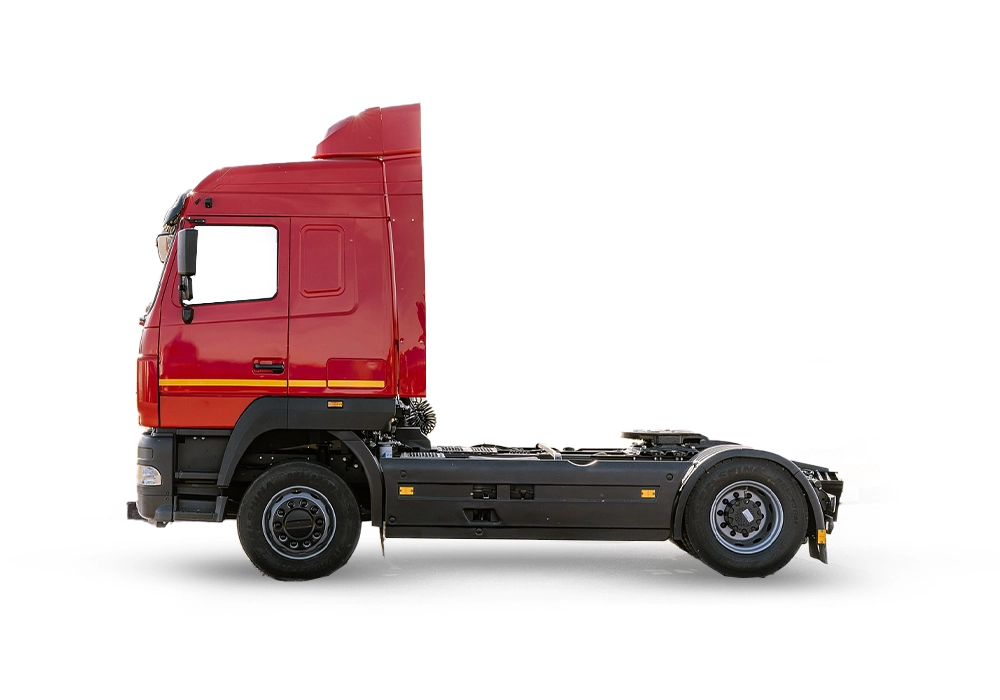

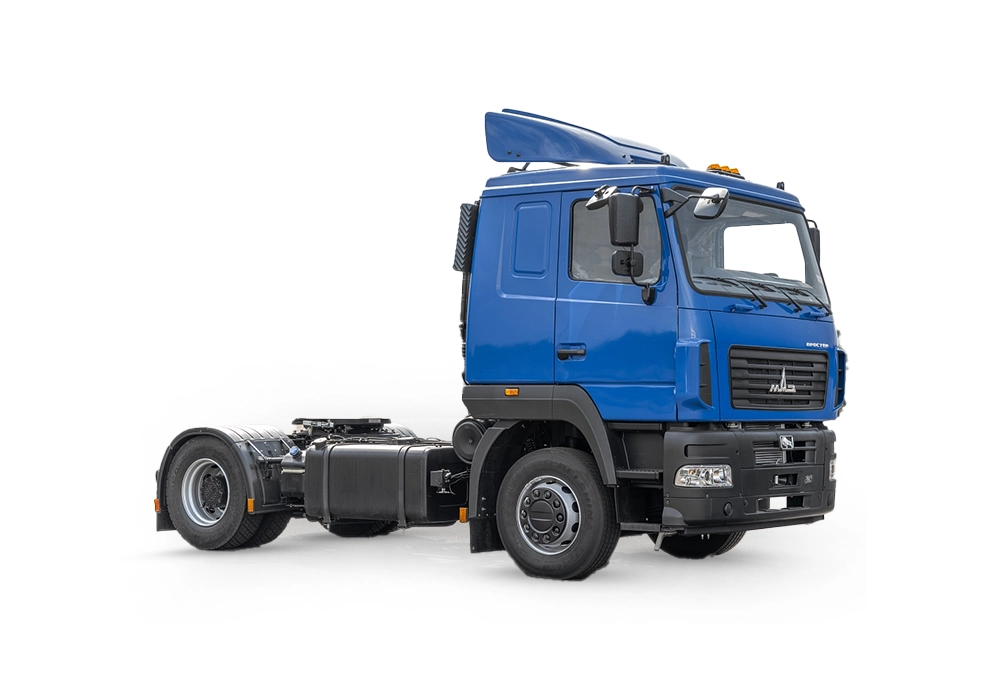

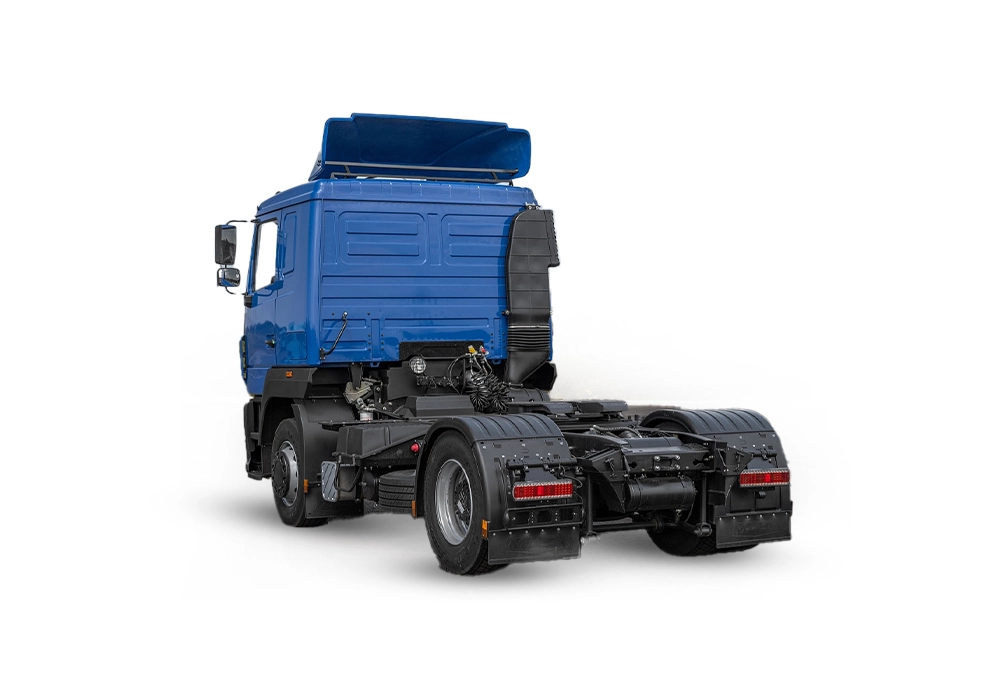

4x2

Technical specifications

Engine

  • EURO 2 & 3 variants.
  • Rated power: from 400 hp up to 410 hp.
  • 6 or 8 Cylinders, 4 stroke, direct injection, V type or inline.
  • Turbo charged, water cooled diesel engine with an oil cooler & an intercooler.

Transmission

  • 12+2 or 16+2 speed synchronized gearbox.

Suspension

  • Semi-elliptical, trapezoidal leaf springs with stabilizer.

Brakes

  • Service brakes: Dual Circuit, full pneumatic system with ABS & ASR.
  • Exhaust brakes: Electro-pneumatically operated.
  • Parking Brakes: Spring loaded, acting on the rear axle.

Tires

  • Rim: 22.5 x 9.0 or 24 x 8.5
  • Tire: Radial metal, 315/80 R22.5 or 1200R24
  • No. of tires: 6+1

Weights

  • GVW: 48000 kg.

Cabin

  • Fully equipped cab with all instruments & warning lights.

Related Products
Quick view

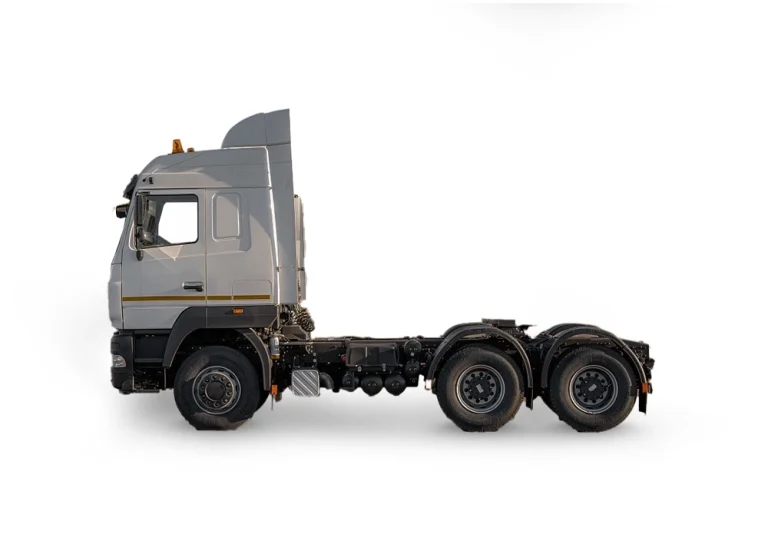

Tractor Head – 643008
