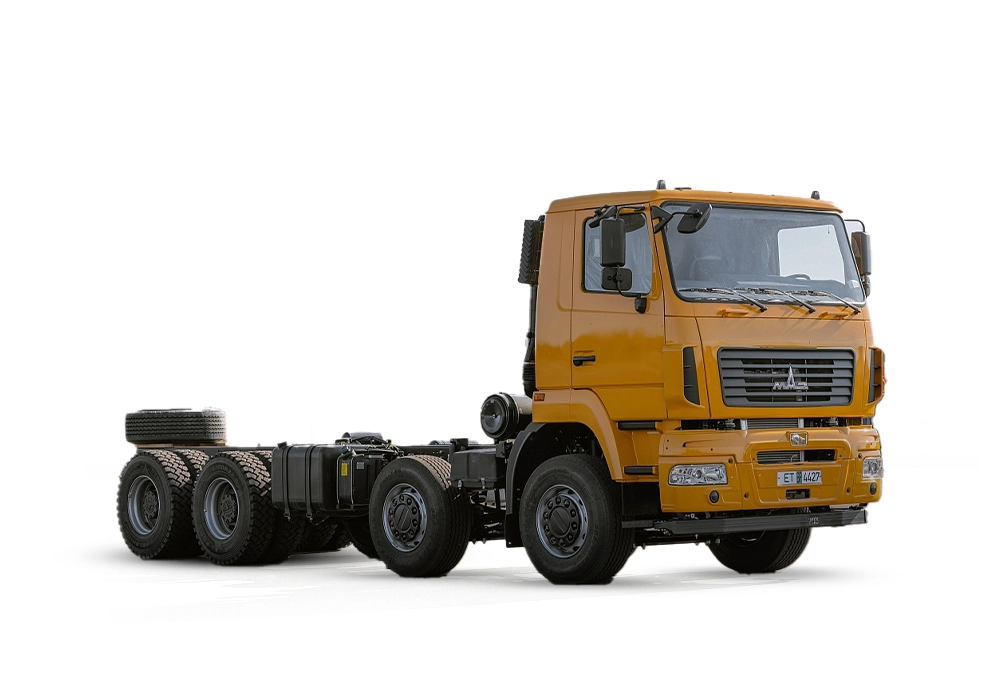

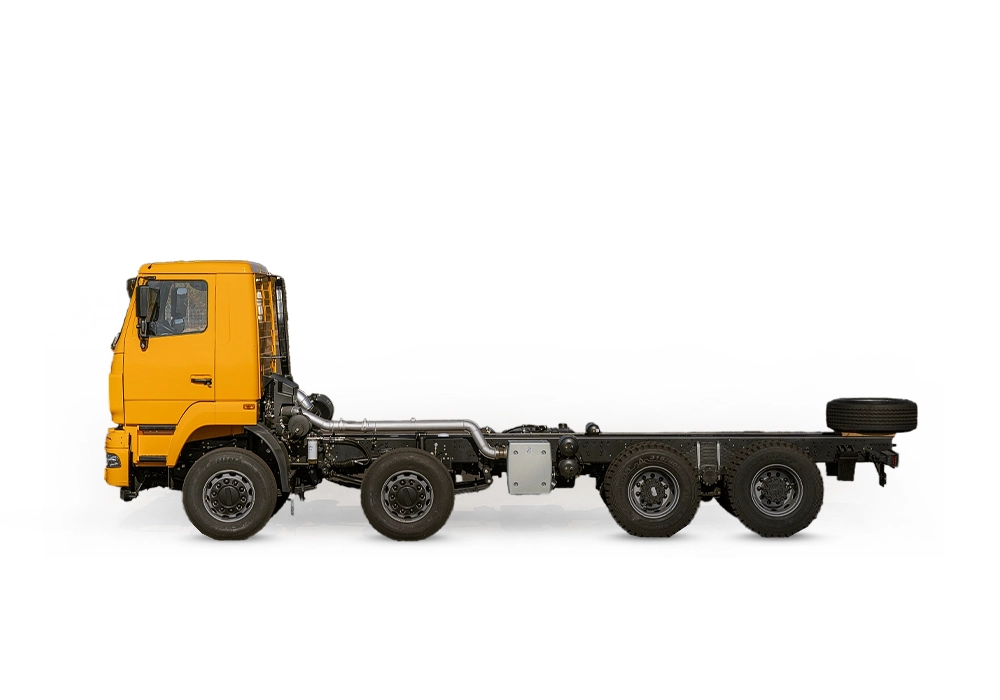

Technical specifications

Engine

  • EURO 2 & 3 variants.
  • Rated power: from 330 hp up to 410 hp.
  • 6 or 8 cylinders, 4 stroke, direct injection, V type or Inline.
  • Turbocharged, water cooled diesel engine with an oil cooler & an intercooler.

Transmission

  • 12+2 speed synchronized gearbox.

Suspension

  • Semi-elliptical, trapezoidal leaf springs with stabilizer.

Brakes

  • Service brakes: Dual circuit, full pneumatic system with ABS & ASR.
  • Exhaust brakes: Electro-pneumatically operated.

Tires

  • Rim: 22.5 x 9.0 or 24 x 8.5
  • Tire: Radial metal, 315/80 R22.5 or 1200R24
  • No. of tires: 12+1

Weights

  • Chassis Payload: 30300 kg.
  • GVW: 41800 kg.

Cabin

  • Fully equipped cab with all instruments & warning lights.

Related Products
Quick view

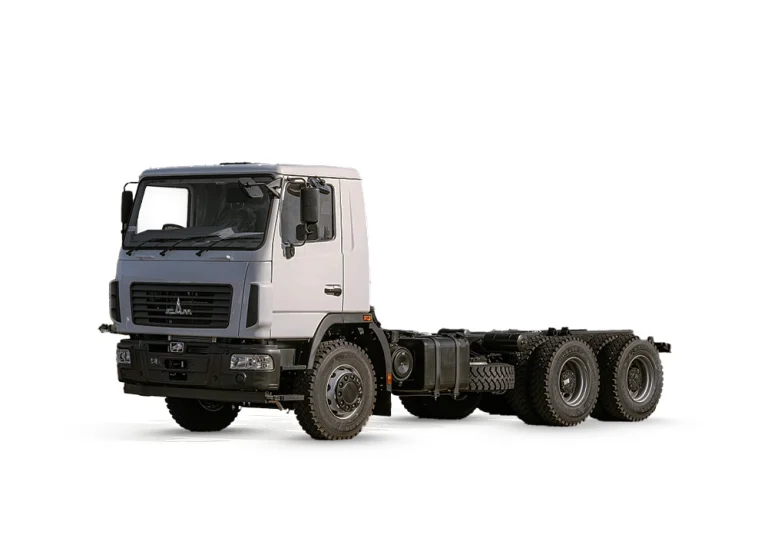

Chassis – 631208

The perfect balance between power and performance. Designed to handle heavier loads with confidence, making it a versatile choice for demanding industries.
Quick view

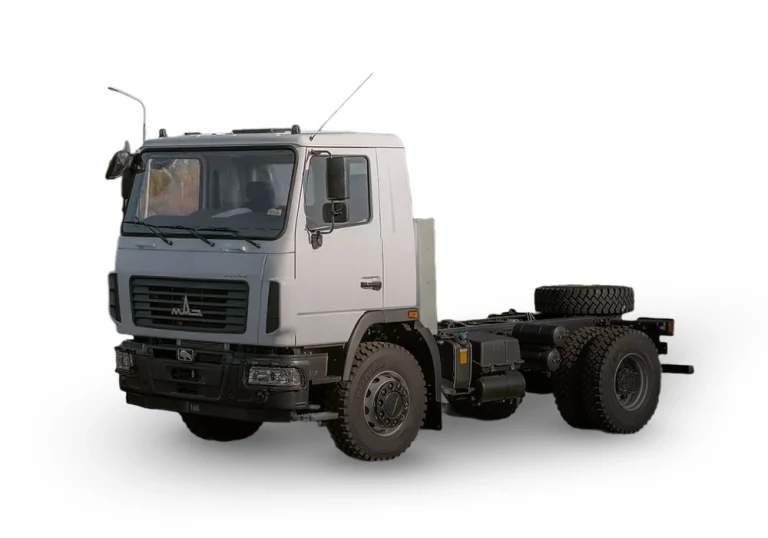

Chassis – 534003
